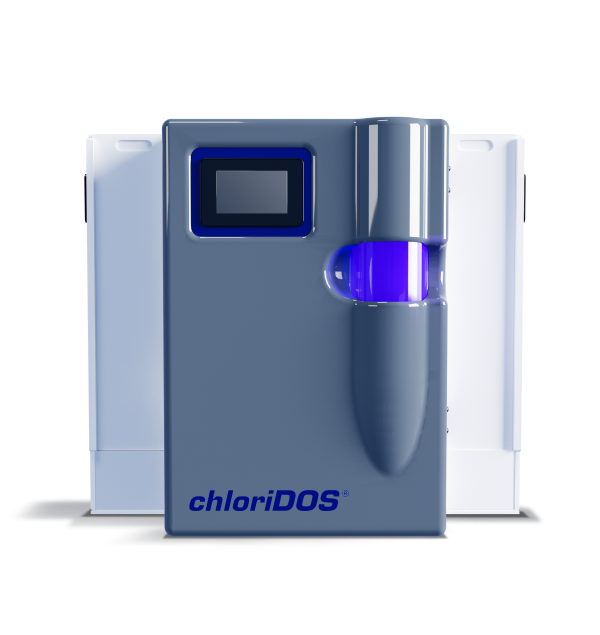

chloriDOS® MCA 1000

Offering precise blending and dosing, chloriDOS® MCA provides the future of on-site monochloramine generation. Each system is crammed full of our industry-leading technology, offering a safe, sustainable and reliable solution for applications big and small.

Our innovative chloriDOS® MCA units incorporate our patented reaction technology to create a batch generator which is unique to Gaffey. Batch generation is performed under a fail-safe vacuum and utilises exact volumetric reagent measuring and dilution water control. This allows for safer, accurate dosages and lower strength solutions.

With a chemical output of up to 1000g/h, the MCA 1000 is well-adapted to small applications and large industrial applications alike, effortlessly flexing to your chemical output needs.

Our unique vacuum technology also allows chemicals to be transferred greater than 50m from remote storerooms. This ensures hazardous chemicals are not stored together, promoting enhanced safety measures.

Available in wall-mounted modular systems and plug-and-play skid systems, our in-situ blending technology provides disinfection solutions to a wide range of applications. No matter what your disinfection needs are, discover the efficient method for the on-site production and accurate dosing of monochloramine. All our systems are factory-tested before dispatch and come with a 2-year warranty, giving you extra peace of mind.

Applications / Sectors

Specifications

Capacity

Grams 1000 per hour
Kilograms 2.4-24 per day

Chemical consumption (l/h, <1% error)

NaClO 50-5000ml per hour
(NH₄)₂SO₄ 5-700ml per hour

Water usage

Litres 500 per hour

Measurements

Net weight Modular 32kg/Skid 85kg

Downloads

For full product data and details please download our supporting documents.

  • chloriDOS MCA Technical Data
    EN
  • chloriDOS® Blending Technology Brochure
    EN
