Hyprolyser® electrochlorination systems

Hyprolyser® iSEC® Modular

The Hyprolyser® iSEC range is a generation of off-line electrochlorination systems, ideal for smaller scale chlorine demands. Available as 6, 30, 60 and 90g/h Cl₂ models encompassing the latest electrolyser design. With precise brine and water proportioning and automatic regulation of the electrolyser DC current to optimise energy use, iSEC can maintain a highly consistent chlorine concentration in the generated product (av. 6g/l) to provide ultimate sustainability.

Operation is simplified through automated product tank filling and a colour changing LED backlight illuminating the electrolyser to clearly display normal operation or if a parameter warning or alarm condition is present, offering added safety and ease-of-use.

Modular system options

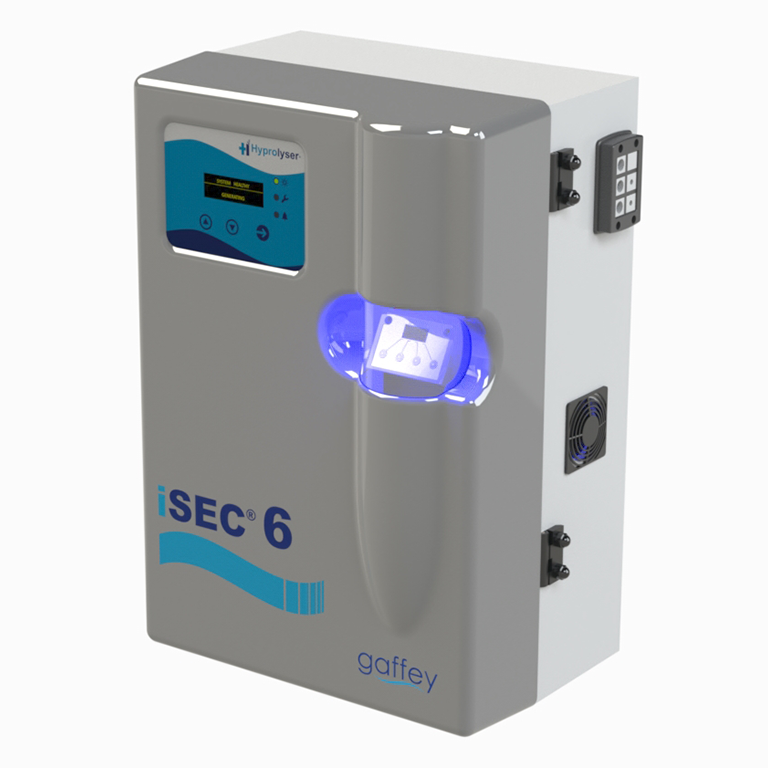

Hyprolyser® iSEC Modular 6 Electrochlorination System

Hyprolyser® iSEC Modular 6 Electrochlorination System

Grams 6g per hour
Kilograms 0.14kg per day
Salt 0.02kg per hour
Soft Water 2 litres per hour
Max Power 0.04kW per hour
Voltage Capable of universal voltages
Net weight 26 Kilograms

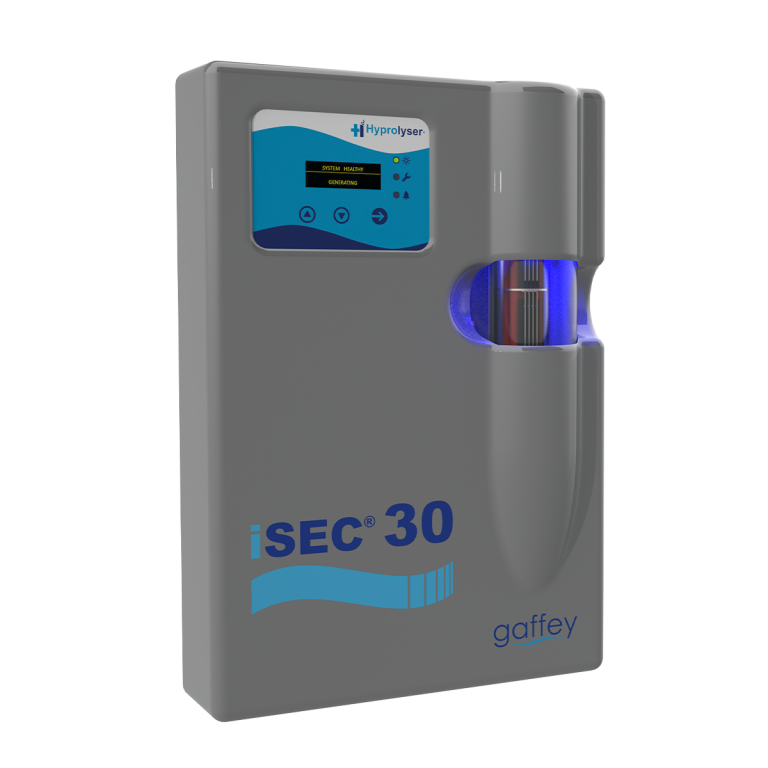

Hyprolyser® iSEC Modular 30, 120V~ Electrochlorination System

Hyprolyser® iSEC Modular 30, 120V~ Electrochlorination System

Grams 30g per hour
Kilograms 0.72kg per day
Salt 0.1kg per hour
Soft Water (l/h) 5 litres per hour
Max Power (kWh) 0.25kW per hour
Voltage Capable of universal voltages
Net weight 18 Kilograms
Hyprolyser® iSEC Modular 30, 230V~ Electrochlorination System

Hyprolyser® iSEC Modular 30, 230V~ Electrochlorination System

Grams 30g per hour
Kilograms 0.72kg per day
Salt Use 0.1kg per hour
Soft Water Use 5 litres per hour
Max Power 0.25kW per hour
Voltage Capable of universal voltages
Net Weight 18 Kilograms

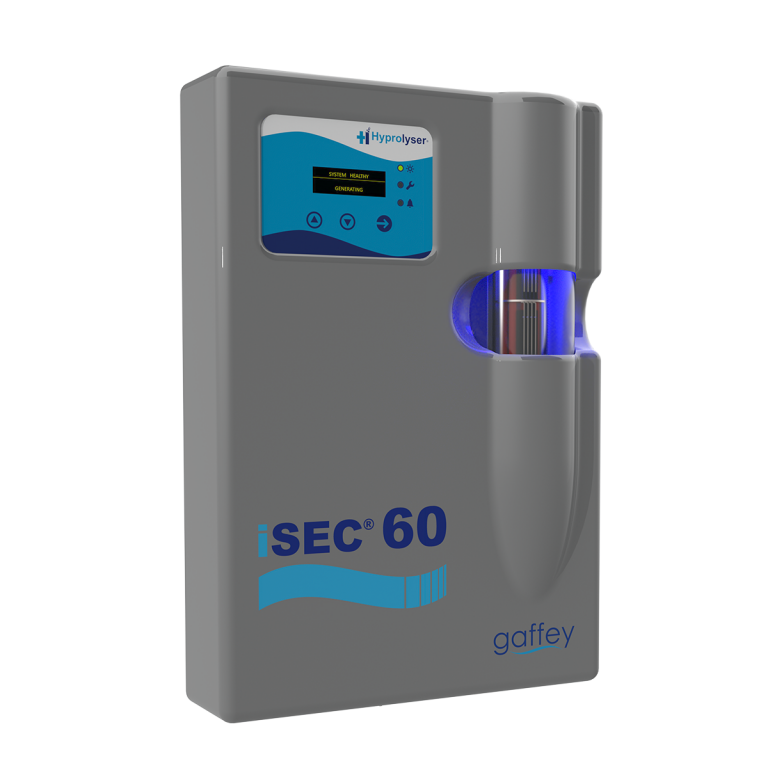

Hyprolyser® iSEC Modular 60, 120V~ Electrochlorination System

Hyprolyser® iSEC Modular 60, 120V~ Electrochlorination System

Grams 60g per hour
Kilograms 1.44kg per day
Salt 0.2kg per hour
Soft Water 10 litres per hour
Max Power 0.5kW per hour
Voltage Capable of universal voltages
Net weight 18 Kilograms
Hyprolyser® iSEC Modular 60, 230V~ Electrochlorination System

Hyprolyser® iSEC Modular 60, 230V~ Electrochlorination System

Grams 60g per hour
Kilograms 1.44kg per day
Salt 0.2kg per hour
Soft Water 10 litres per hour
Max Power 0.5kW per hour
Voltage Capable of universal voltages
Net weight 18 Kilograms

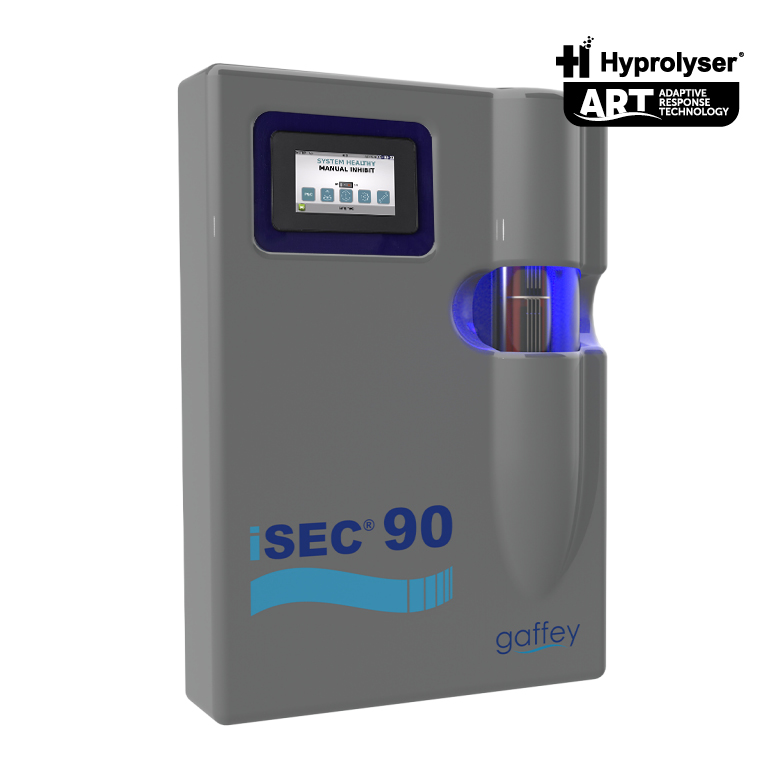

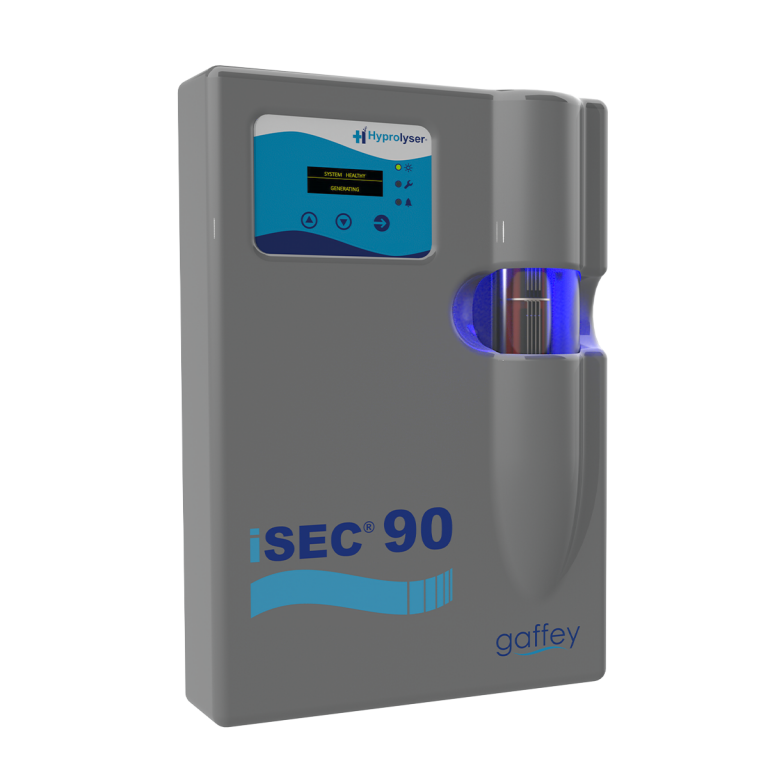

Hyprolyser® iSEC Modular 90, 120V~ Electrochlorination System

Hyprolyser® iSEC Modular 90, 120V~ Electrochlorination System

Grams 90g per hour
Kilograms 2.16kg per day
Salt 0.3kg per hour
Soft Water 15 litres per hour
Max Power 0.75kW per hour
Voltage Capable of universal voltages
Net weight 57 Kilograms
Hyprolyser® iSEC Modular 90, 230V~ Electrochlorination System

Hyprolyser® iSEC Modular 90, 230V~ Electrochlorination System

Grams 90g per hour
Kilograms 2.16kg per day
Salt 0.3kg per hour
Soft Water 15 litres per hour
Max Power 0.75kW per hour
Voltage Capable of universal voltages
Net weight 18 Kilograms
Case Study

Rio Tinto choose Hyprolyser® technology for local town swimming pool

The Nhulunbuy Aquatic Centre’s existing chlorine gas disinfection is replaced with Hyprolyser® electrochlorination. Upgrade work was necessary to ensure the public swimming pool remains reliably disinfected, as well as reducing the risks associated with chlorine gas.

Which system is right for your application?

Contact our team to find out more: email info@gaffey.co.uk or services@gaffey.co.uk

Contact our team
Insight

An introduction to electrolytic chlorination systems

If you need chlorine but you don't want to handle or store hazardous chemicals on-site, electrolytic chlorination systems are a good option.
